Traffic Counter

Overview

Intelligent counting at the edge

Traffic Counter is an ACAP application that runs directly on Axis cameras, leveraging Axis Object Analytics to perform real‑time multi‑class detection and counting — people, cars, bicycles, and trucks — without any external server or cloud dependency.

Counted data is aggregated into configurable groups and pushed automatically to customer platforms via Axis Generic Data Push, or via native compatibility with Webreport and DataManager protocols, fully protecting existing customer investments and historical datasets.

The intuitive on‑camera UI provides live counts, historical statistics, scenario editing, and multi‑language support across eight languages.

12+ Object classes detected

8 Languages supported

15min Data push intervals

∞ Groups & checkpoints

Features

Why choose Traffic Counter

Designed for system integrators and end‑users who demand reliability, flexibility, and seamless integration with existing infrastructures.

🧠

Multi‑class edge intelligence

Count people, vehicles, and bicycles simultaneously from a single Axis camera feed — no additional hardware or cloud dependency required.

Edge AI

🔗

Legacy continuity

Native compatibility with Webreport and DataManager protocols preserves existing customer investments and keeps current BI reporting workflows running without interruption.

Compatible

📈

Rich KPIs & statistics

Historical statistics, daily/hourly views, and real‑time counters via the web interface. Flexible time windows to exclude lunch breaks, closing hours, or staff traffic.

Analytics

🔑

Scalable licensing

Three‑tier Activation Key system (Basic / Pro / Full) lets system integrators purchase, activate, and manage licenses remotely at scale.

Flexible

🖥️

On‑camera UI

Intuitive interface accessible directly from the camera's web page. Live view with video overlay, scenario editing, and multi‑language support.

Native

🛡️

Reliable data push

Automatic sending at regular intervals with sync across all cameras. Test button for immediate connection verification and troubleshooting.

Robust

How it works

From camera to insight

Traffic Counter runs entirely on the Axis camera. Here's how it turns video streams into actionable data.

Configure scenarios

Create virtual lines in Object Analytics directly from the Scenarios tab. Define IN/OUT directions and object classes (human, vehicle).

Define groups

Group checkpoints (doors, corridors) and assign IN/OUT scenarios. Set sending intervals, server URLs, and optional authentication.

Automatic data push

Data is sent ~60 seconds after each 15‑minute block closes. All cameras stay in sync. Test button verifies server connectivity.

View & analyse

Access live counters, historical statistics (daily/hourly), and event notifications. Full multi‑language support built in.

Interface preview

See it in action

Click any screenshot to enlarge. Each image shows a key part of the interface with a reference to the user manual.

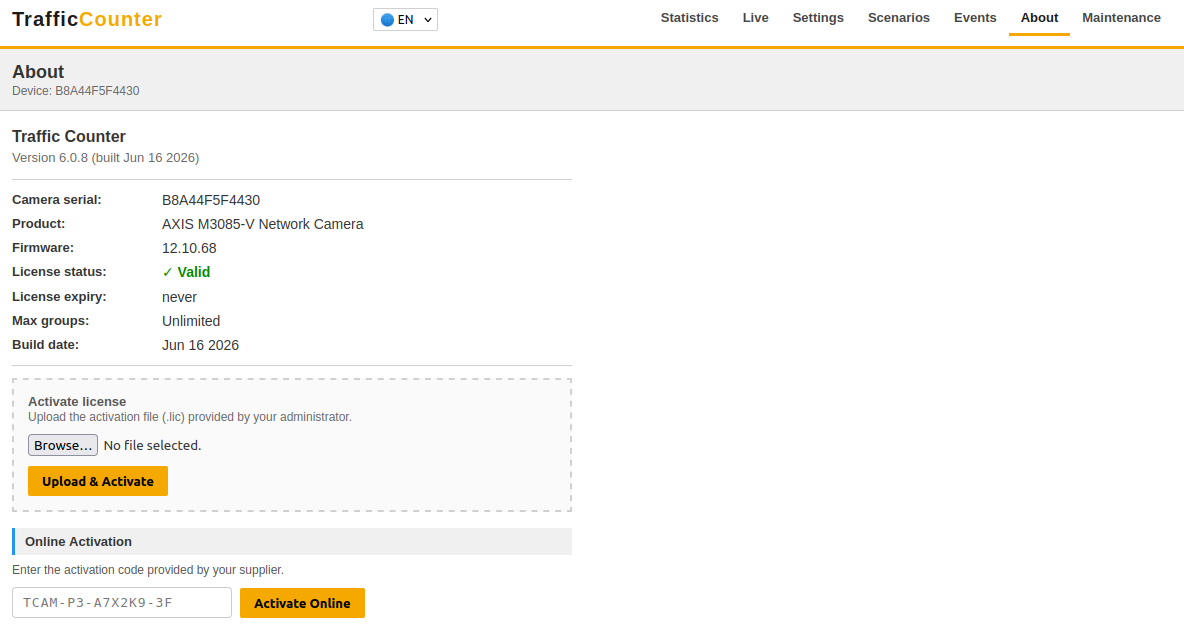

About & License

License activation, serial number, and system info.

📖 §3 – p.3-4

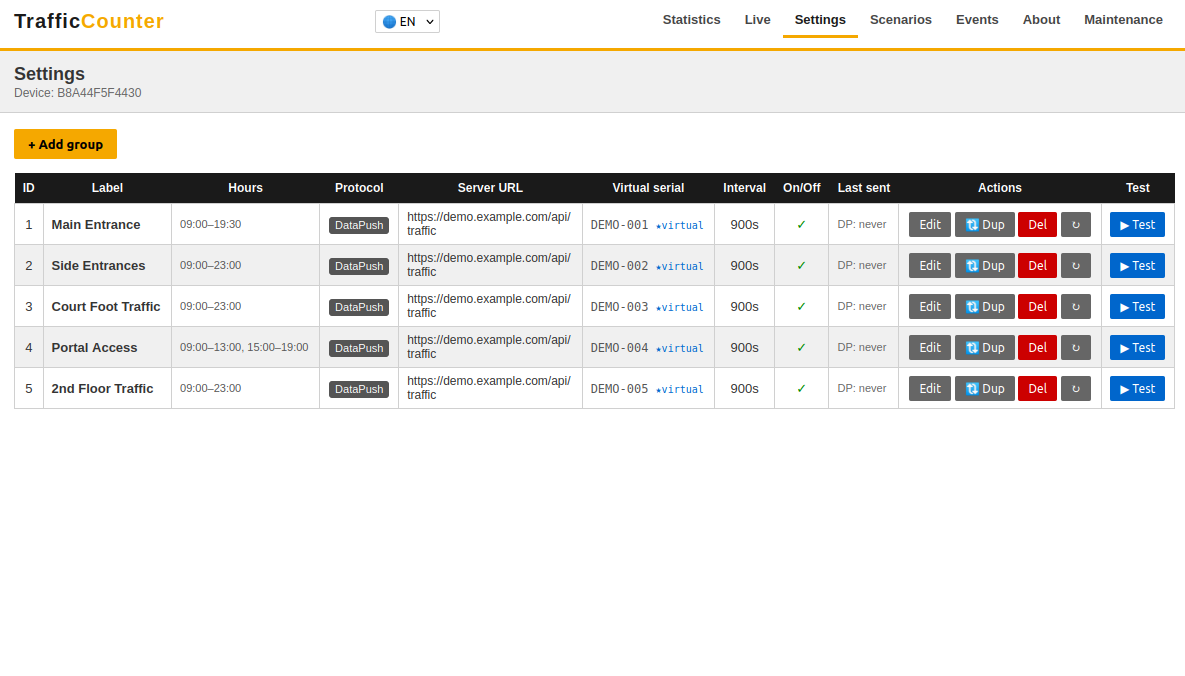

Settings – Groups

List of configured checkpoints with status and actions.

📖 §4 – p.4-5

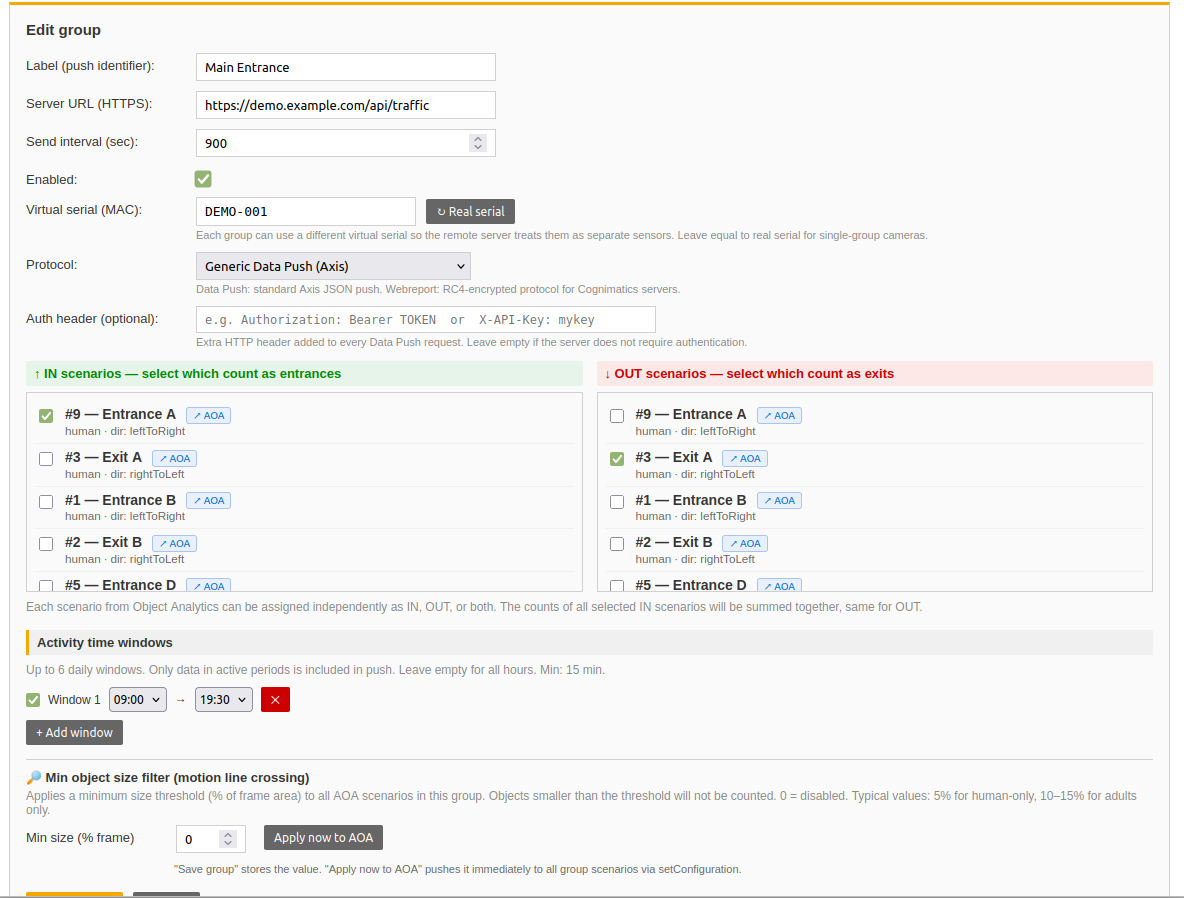

Edit group – main

Label, server URL, interval, virtual serial, protocol.

📖 §4 – p.5-6

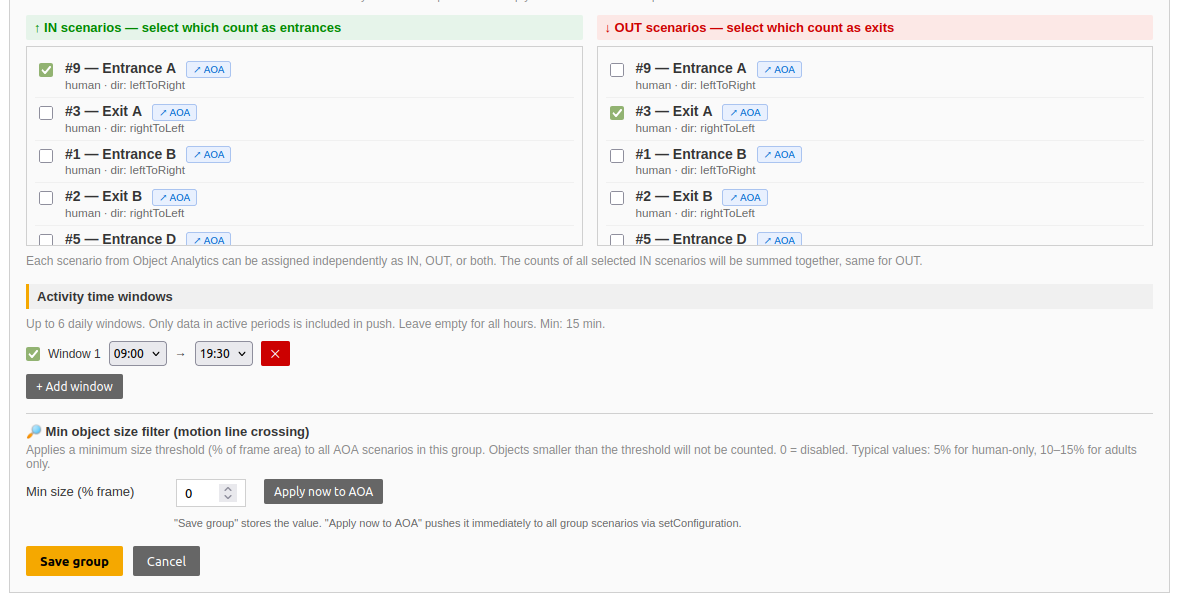

Edit group – scenarios & windows

Assign IN/OUT scenarios, activity time windows, min size filter.

📖 §4 – p.6-8

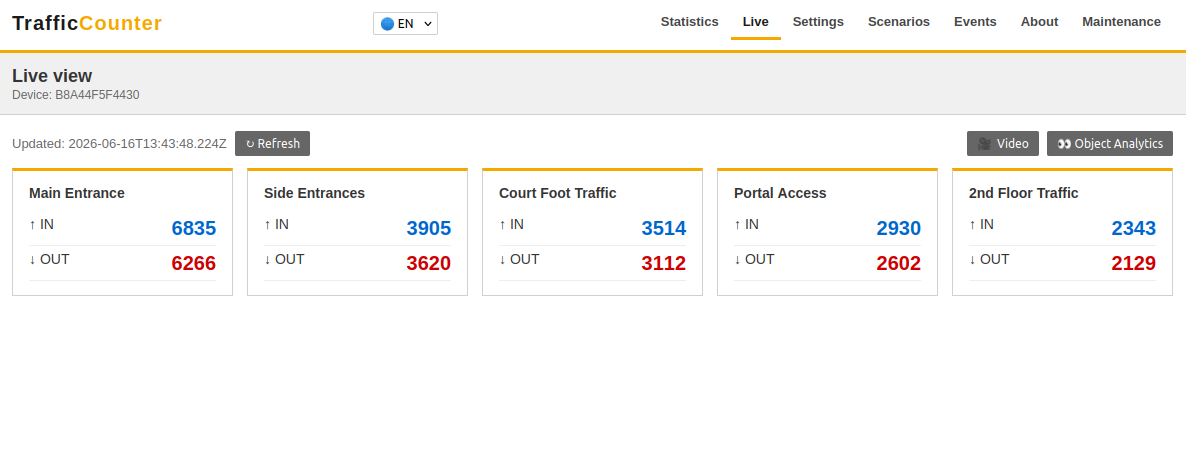

Live – counters only

Real‑time IN/OUT totals for all groups.

📖 §6 – p.8-9

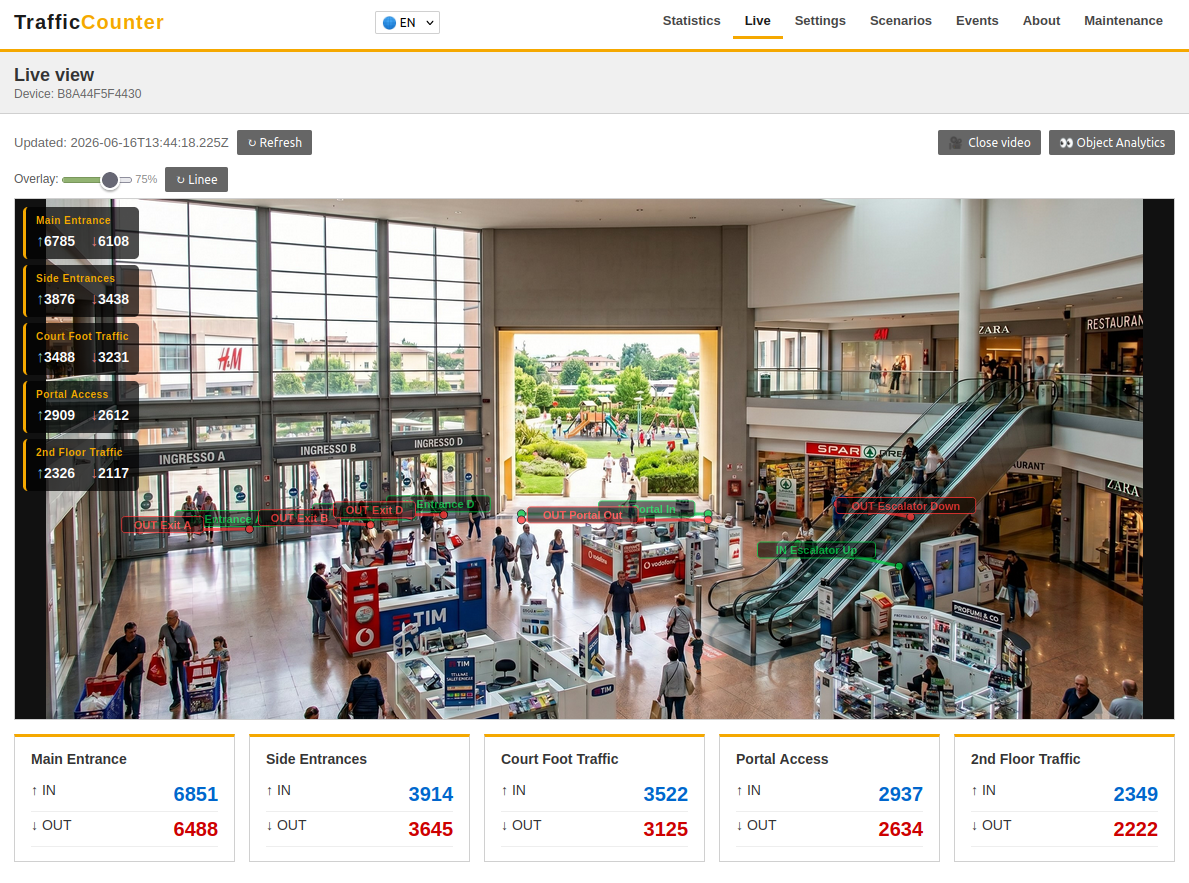

Live – with video overlay

Camera stream with counters and AOA lines.

📖 §6 – p.9

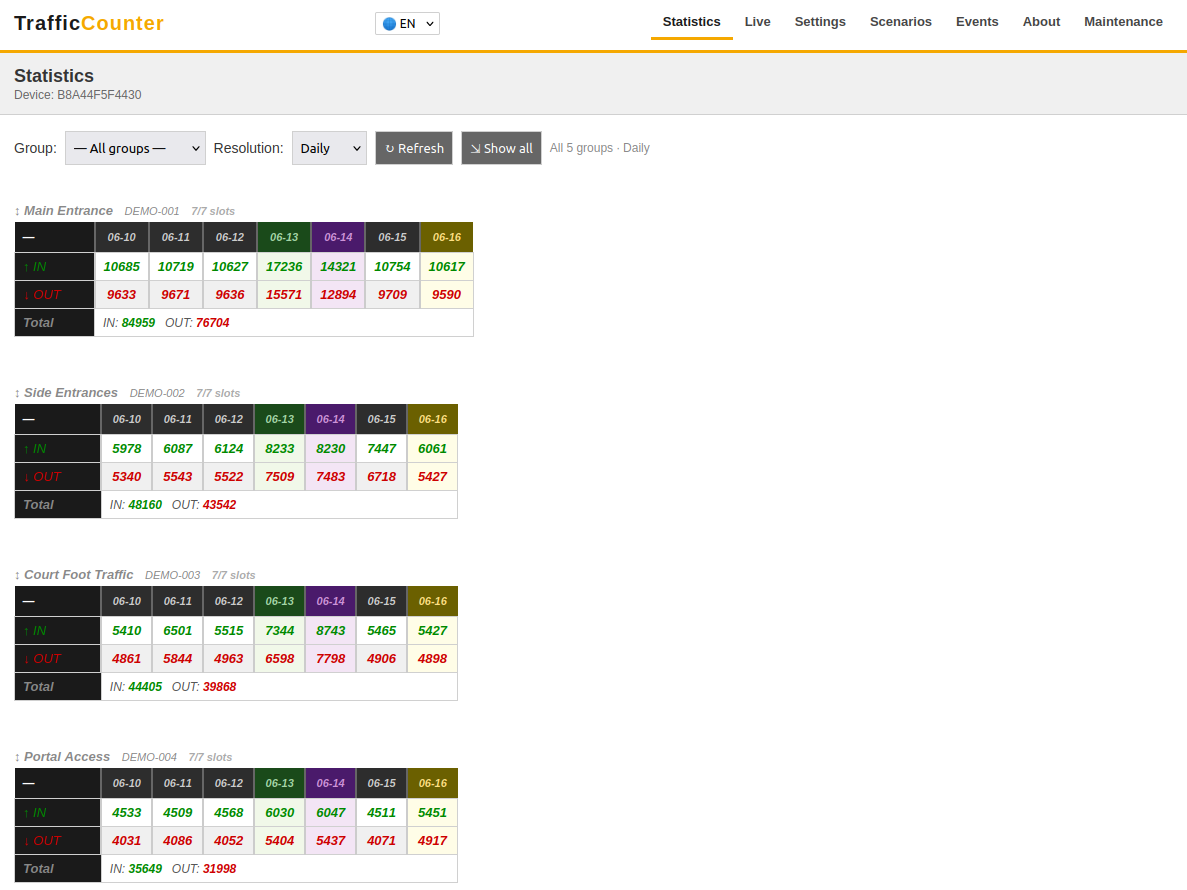

Statistics – Daily

Historical view per group with IN/OUT totals.

📖 §7 – p.10-11

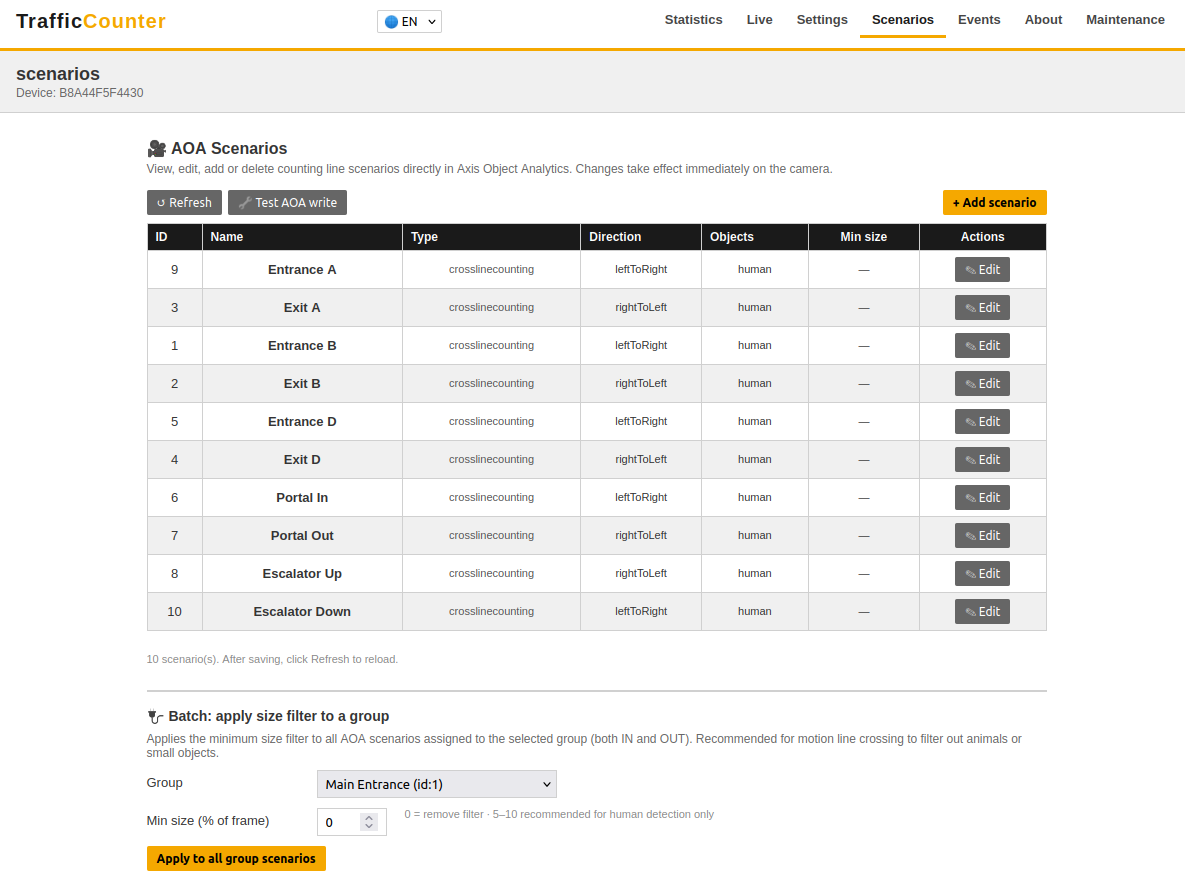

Scenarios – list

All AOA cross‑line scenarios with IDs and directions.

📖 §9 – p.13-14

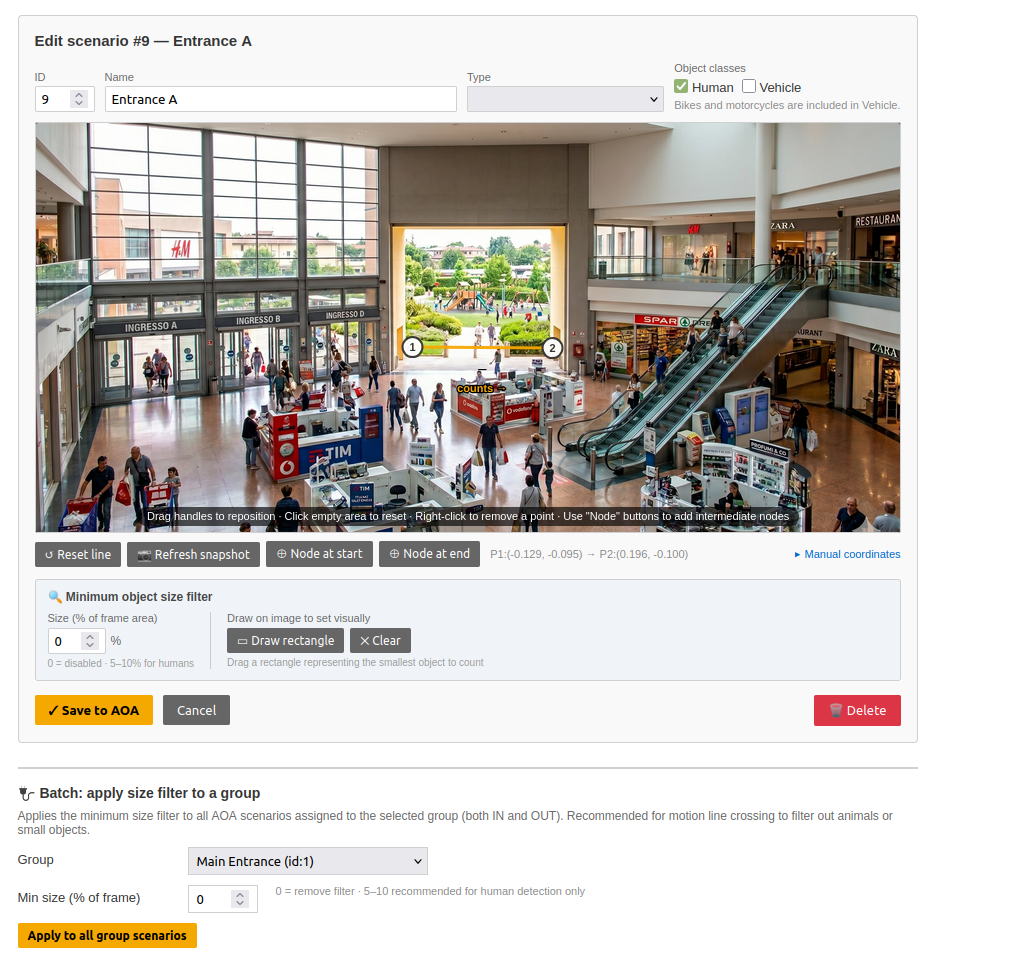

Edit scenario – graphical

Drag‑and‑drop line positioning on live snapshot.

📖 §9 – p.14-15

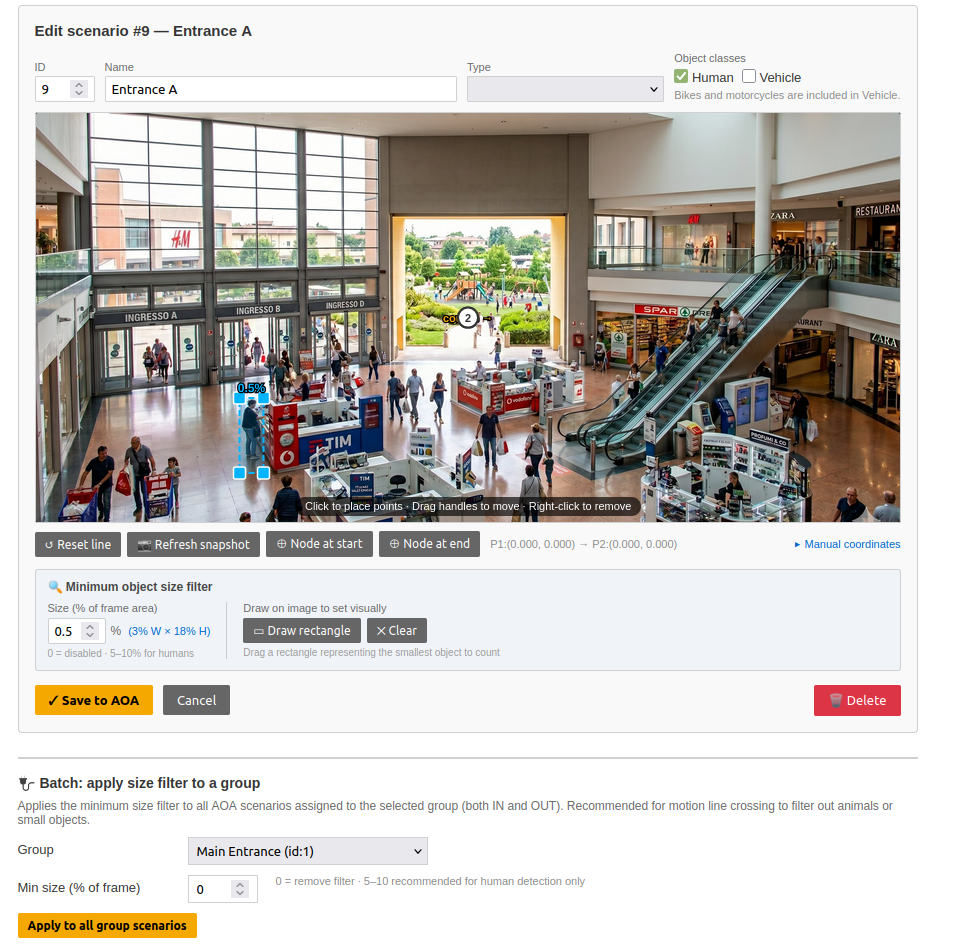

Minimum object size filter

Set threshold and draw rectangle to exclude small objects.

📖 §9 – p.15-16

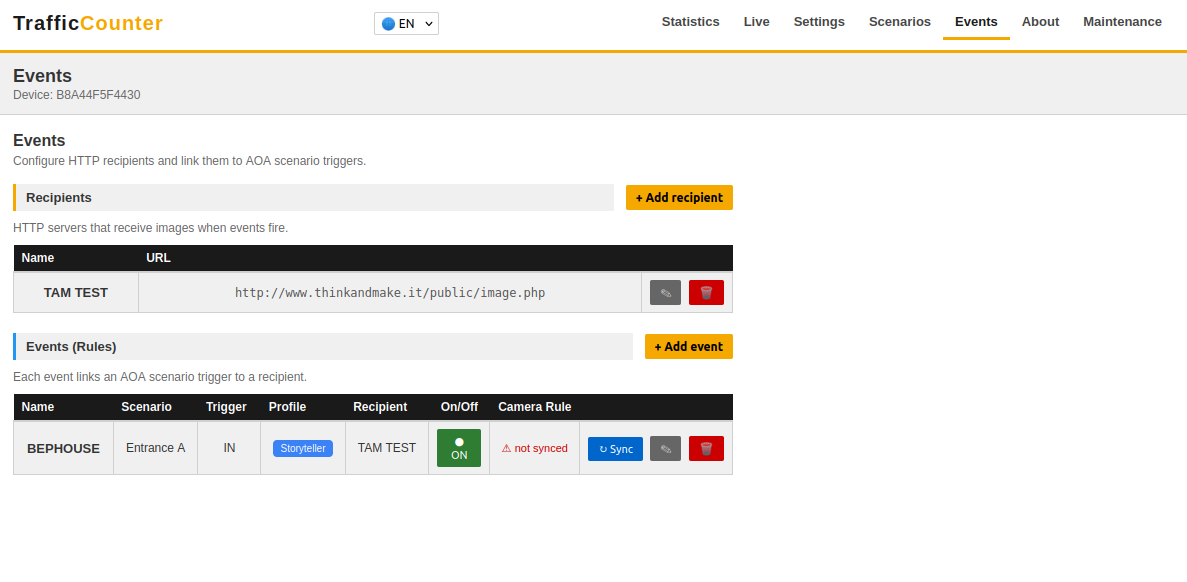

Events – recipients & rules

HTTP recipients and event rules with ON/OFF control.

📖 §12 – p.18-19

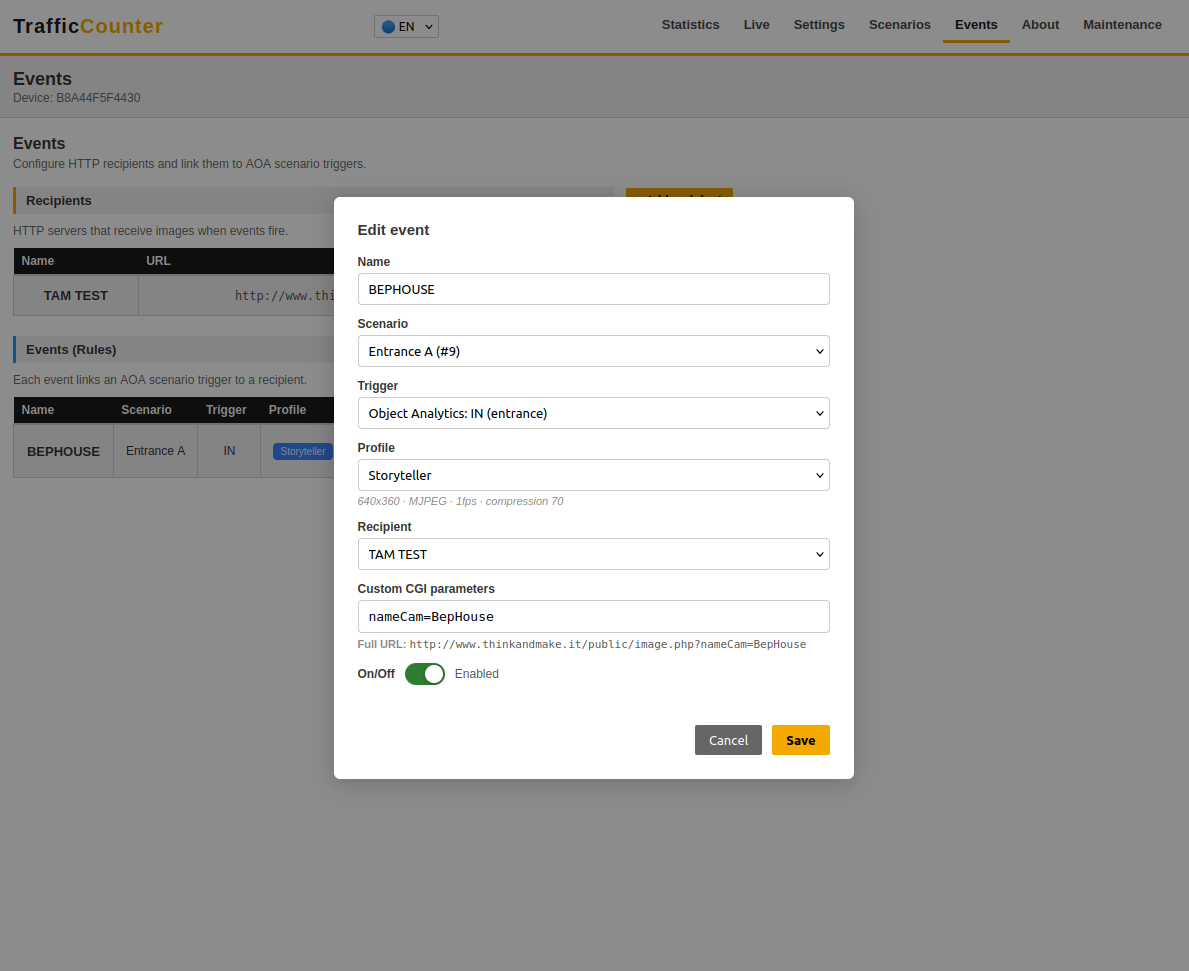

Edit event

Link AOA scenario to recipient with custom CGI parameters.

📖 §12 – p.19-20

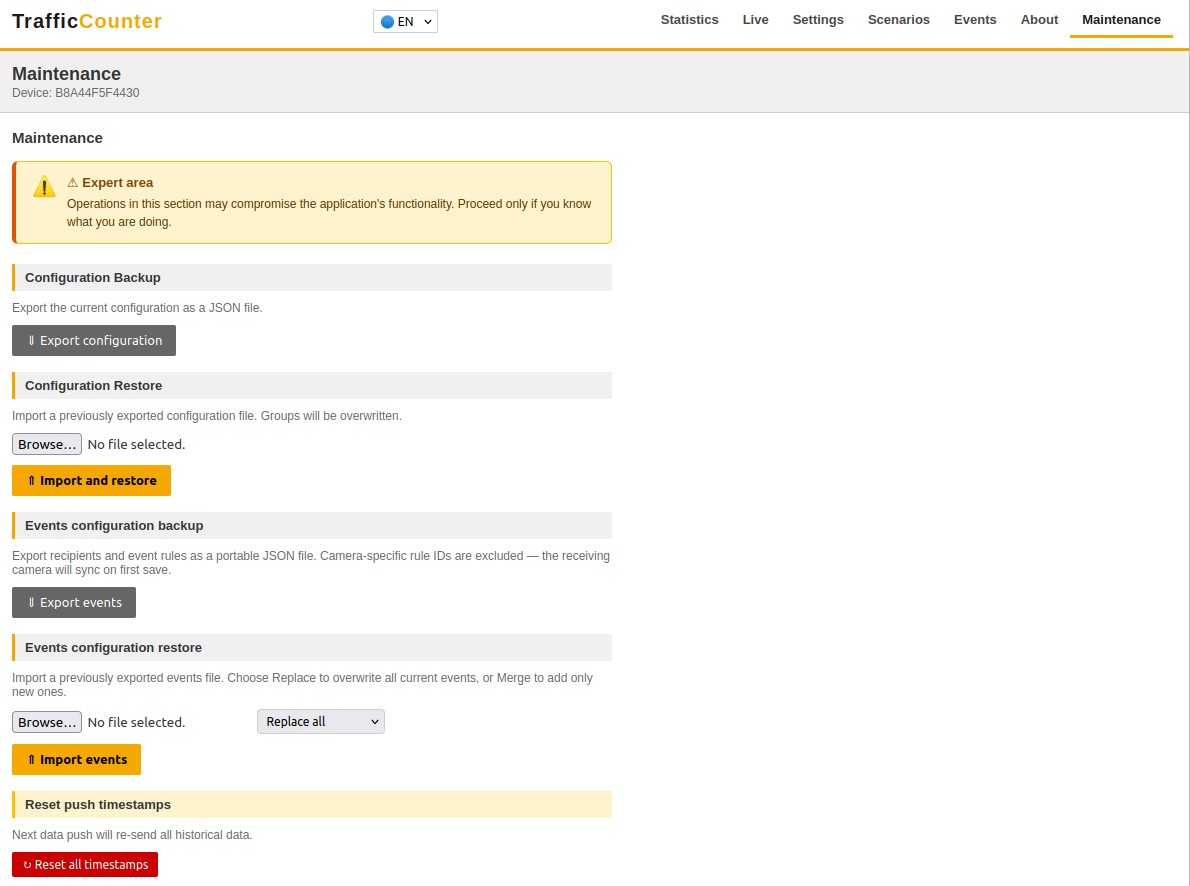

Maintenance – backup & restore

Export/import groups, events, reset push timestamps.

📖 §10 – p.17-18

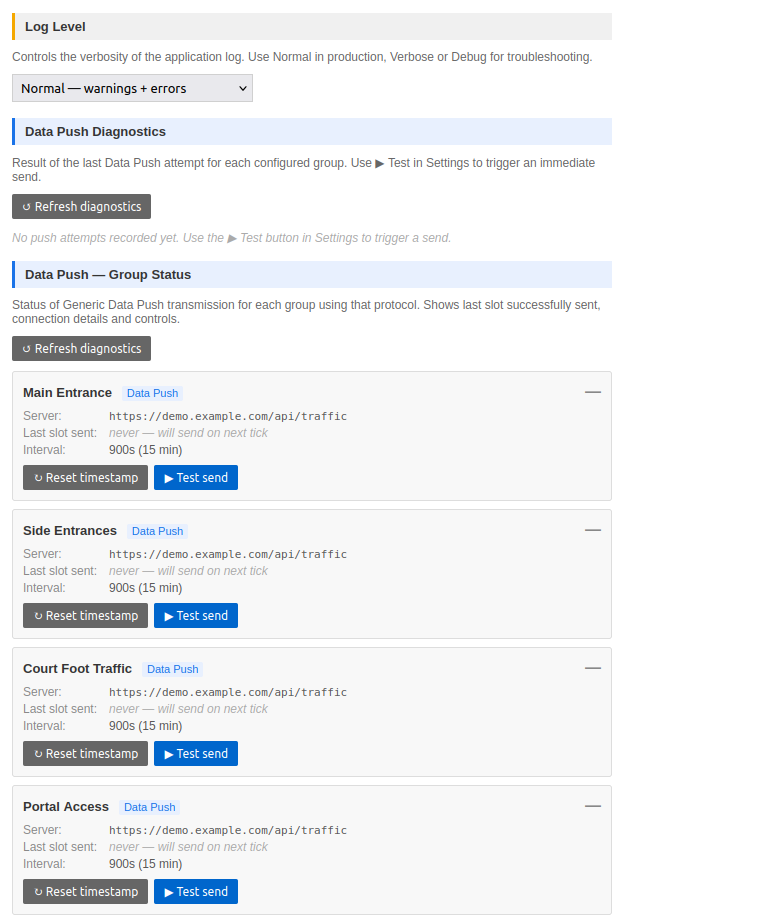

Maintenance – diagnostics

Data Push diagnostics and per‑group status.

📖 §10 – p.18

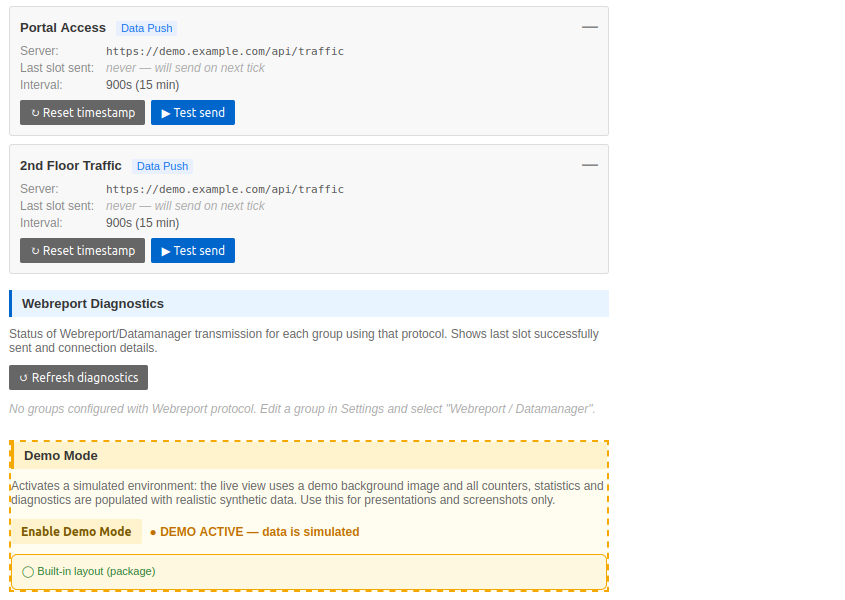

Maintenance – Demo mode

Simulated environment for presentations and screenshots.

📖 §10 – p.18

Technical specifications

Built on Axis technology

Traffic Counter leverages the full power of Axis Object Analytics and the ACAP platform.

Counting & detection

Object classesHuman, Vehicle (car, truck, bicycle, motorcycle)

Scenario typeCross Line Counting

Min. size filter0–100% of frame area (configurable)

DirectionsleftToRight / rightToLeft

Data & integration

ProtocolsAxis Generic Data Push, Webreport / Datamanager (RC4)

Send intervalConfigurable (default 900s / 15 min)

AuthenticationCustom HTTP headers (Bearer, X-API-Key, etc.)

Virtual serialPer‑group MAC for multi‑checkpoint cameras

Licensing

TiersBasic (1 entry) / Pro (3 entries) / Full (5 entries)

Activation.lic file or online activation (TCAM-XXXX-XXXX-XX)

Max entries1, 3, or 5 (unlimited groups per entry)

ValidityPerpetual (no expiry) or time‑limited

Interface & UX

LanguagesEnglish, Italiano, Français, Deutsch, Español, 中文, 日本語, 한국어

ViewsLive (with/without video), Statistics (daily/hourly/15min)

Event notificationsHTTP recipients + rule engine (IN/OUT triggers)

Backup & restoreJSON export/import for groups, scenarios, events

Licensing

Choose the right plan

Three tiers based on the number of entries (checkpoints). All plans include unlimited groups and the full feature set.

Basic

1 entry

Perfect for single‑door or single‑corridor installations.

1 entry (checkpoint)
Unlimited groups per entry
All object classes
All protocols
Full UI & statistics

Pro

3 entries

Ideal for multi‑entrance locations (3 checkpoints).

3 entries (checkpoints)
Unlimited groups per entry
All object classes
All protocols
Priority support

Full

5 entries

All entries (up to 5 checkpoints) for maximum flexibility.

5 entries (checkpoints)
Unlimited groups per entry
All object classes
All protocols
Premium support & consulting

All plans include perpetual license, free updates, and email support. Volume discounts available.

About

Think and Make it!

Founded in 2007, Think and Make it! has delivered advanced people‑counting and video analytics solutions built on Axis cameras for nearly two decades. With thousands of counters deployed across Europe for leading retail chains and international rollout projects, we combine deep Axis platform expertise with continuous R&D.

Our long‑standing relationship with Axis — and our deliberate tribute to the iconic Axis People Counter in our interface design — reflects a partnership built on shared vision and mutual growth.
