APW2000

Accessory for T-eye Automated Drive Recorder Spcifically Designed for Taxi Applications

For those installations requiring the prolongation of the record time, allowing one to record video for an extended period of time once the engine has been turned off, replace the cigarette lighter plug assembly with this module, adding wiring as shown. By way of setting the dip switch per the diagram on the cover, one may keep recording data from 1 second to 10 hours after the vehicle’s ignition has been turned off.

The unit is defaulted for a 30 second shutdown at the factory for test purposes. Typically one would see the recorder continue to record data for 30 minutes after ignition shut off. Example: in a school bus application: a bus arrives at a school to pick up students. The engine is turned off. The system will record students boarding with the engine shut off for 30 minutes. In a City bus application: A bus driver stops the engine to assist a passenger boarding the bus, the bus will continue to record video for the preset time (example, 10 minutes).

APW2000 Installation

1. Ensure that all power is off. Read the instruction sheet first to familiarize yourself with the wiring.
2. Remove the cover of the Delay Timer Module to access the connections.
3. Install the T-eye Recorder as you normally would on the windshield or in the optional security enclosure.
4. Install the timer module in a secure area that would not be subject to water.
5. Plug the USB connector of the supplied cable to the T-eye recording unit.
6. Plus the mini jack near the USB cable to the IR illuminator (if used), at the recorder location.

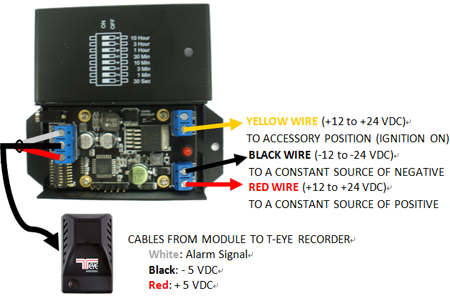

7. Terminate the bare ends of the USB cable (white, black and red as shown). Note: The delay timer also reduces power from 12 to 24 volts from the supply source to 5 volts DC used by the recorder.
8. Plug in the remote manual push button into the mini-jack (if used).
9.  Connect the Delay Timer to a source of continuous 12-24 VDC power. (+) red and (-) black wires
10. Connect the Delay Timer Ignition Sense wire (yellow) to a source of +12 to +24 VDC when the engine is running and/or the accessory switch of the engine is on.
11. Re-apply any power that has been removed.
12. Test the system by turning the engine on, after seeing the time show on the LED display of the recorder (signaling to you that the unit is operating normally), then turn the engine off. The recorder will shut down in 30 seconds. Adjust the dip switch to the desired delay shut down time.
